Premium UPVC Casement Windows | Flush Sash, Triple Glazing & Multi-Point Lock

Premium UPVC Casement Windows from HonCham

HonCham's premium UPVC casement windows are engineered for procurement professionals, wholesale distributors, and project specifiers who require certified performance data, not marketing copy. Manufactured at a 30,000㎡ factory in Shandong, China, these premium UPVC casement windows serve buyers across Europe, North America, South America, Asia, and Oceania. MOQ is 1 set, with DDP door-to-door logistics available.

Premium UPVC Casement Windows: Multi-Chamber Profile and Galvanized Reinforcement

These premium UPVC casement windows are extruded from virgin, multi-chambered UPVC — not recycled compound. Multiple sealed internal air chambers create thermal breaks that resist heat and cold transfer. Profile wall thickness is 2.5 mm to 2.8 mm high-impact grade, with galvanized steel reinforcement bars factory-inserted inside each chamber to prevent warping under heavy double or triple glazing units.

• Profile material: Multi-chamber virgin UPVC — UV-resistant, anti-corrosive, maintenance-free for over 25 years
• Wall thickness: 2.5 mm – 2.8 mm high-impact grade
• Reinforcement: Galvanized steel bars factory-inserted into load-bearing chambers
• Surface finish: White, black, anthracite grey, or wood-grain laminate (Golden Oak, Mahogany); dual-color inside/outside available

Premium UPVC casement windows from HonCham comply with NFRC, NAMI, CE, AAMA, and AS2047 standards — tested for thermal performance, impact resistance, and weatherproofing durability. These certifications reduce customs and energy code documentation burden across North America, Europe, and Australia.

Engineering Performance: Compression Sealing, Friction Stays, and Multi-Point Locking

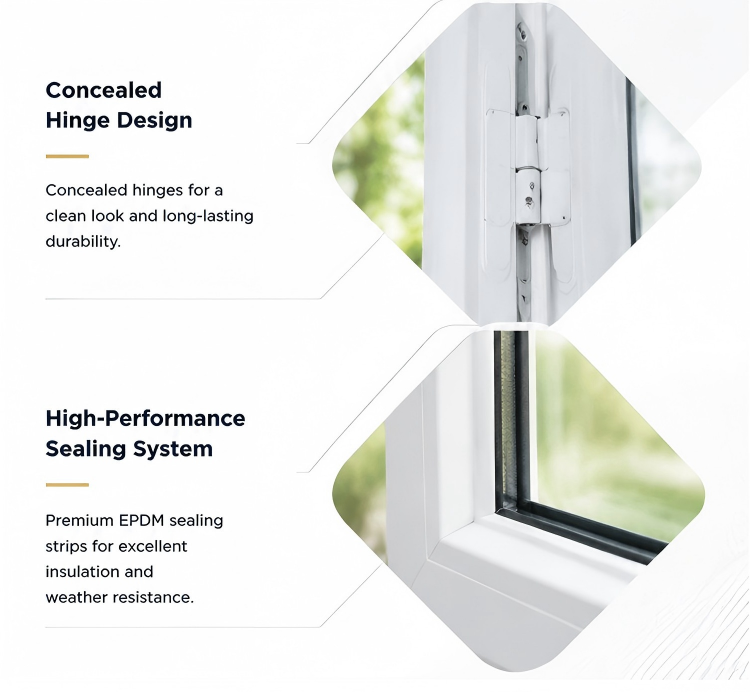

What distinguishes premium UPVC casement windows from standard alternatives is the sealing and hardware system. Unlike sliding windows that open only 50% of the aperture, these premium UPVC casement windows swing fully open for 100% ventilation. When locked, the multi-point system draws the sash against a triple continuous EPDM compression gasket on all four frame edges — similar to a refrigerator door seal rather than a brush contact.

This compression seal delivers IP65 waterproof performance, up to 40 dB acoustic noise reduction, and hurricane-rated structural integrity. Hardware typically accounts for less than 10% of total installed cost yet drives the majority of field warranty claims — which is why these premium UPVC casement windows use austenitic stainless steel friction stays and multi-point locks from Roto, HOPO, or Siegenia.

• Hinges: Stainless steel friction stays; 90-degree washability hinges for exterior glass cleaning from inside

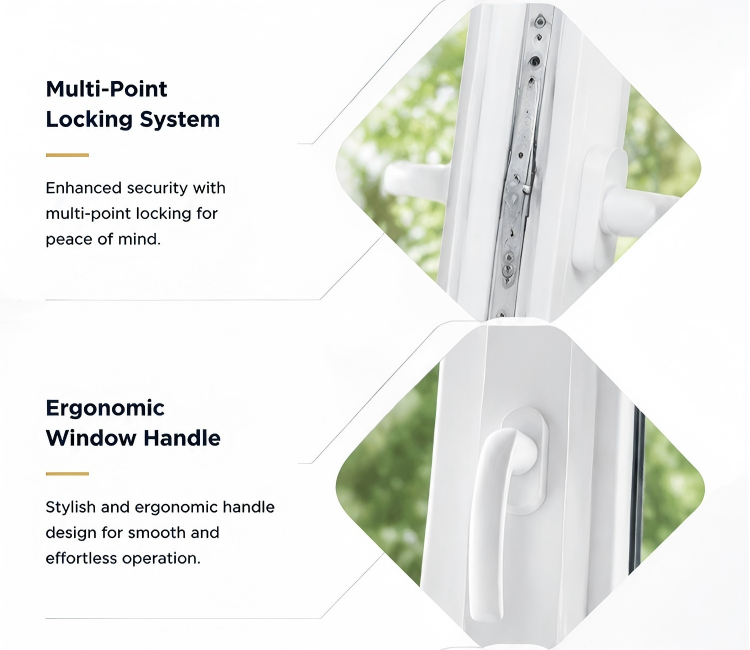

• Locking: Multi-point system with mushroom cams — Roto, HOPO, or Siegenia brand options
• Sealing: Triple continuous EPDM rubber compression seals on all four sides
• Waterproof: IP65 extreme weather resistance
• Sound insulation: Up to 40 dB STC noise reduction
• Wind load: Hurricane-rated structural integrity available

Three opening modes: outward casement (full aperture), top-hung awning (ventilates during rain), and inward tilt-and-turn (tilts for ventilation, turns inward for glass cleaning). Tilt-and-turn is standard for high-rise projects where exterior access is restricted.

Glazing Options for Premium UPVC Casement Windows

Upgrading premium UPVC casement windows from double to triple glazing delivers measurable U-value gains, but the additional 40–50% glass unit weight increases reinforcement and hinge load requirements — a trade-off to evaluate before specification is finalized.

• Double glazed standard: 5 mm + 12 mm Argon + 5 mm
• Double glazed heavy: 6 mm + 12 mm Argon + 6 mm
• Triple glazed: For Passivhaus compliance; U-values to 0.7 W/m²K
• Low-E coated: Solar heat gain control for tropical markets
• Acoustic PVB laminated: Up to 42 dB noise reduction
• Frosted or obscure: Bathroom privacy with natural light

Specifications

Customization for Premium UPVC Casement Windows

HonCham manufactures premium UPVC casement windows to exact millimeter dimensions, including architectural shapes: arched top casements, gothic profiles, and oversized floor-to-ceiling picture combinations. Available customization:

• Grilles: Internal GBG or external SDL for colonial, craftsman, or prairie aesthetics
• Screens: Retractable, magnetic, or stainless steel security meshes
• Hardware finishes: Frame-matched, brushed nickel, or matte black; HOPO, Roto, and Truth Hardware brands
• OEM and private-label: Custom branding, packaging, and tiered wholesale pricing from MOQ 1 set

For international distributors, Hongchang prepares compliance documentation packages — test reports, material declarations, and product certificates for EU, Australian AS/NZS, or North American NFRC requirements.

Premium UPVC Casement Windows in Real Projects

Passive House Construction, Munich

A developer achieved full Passivhaus certification using these premium UPVC casement windows with triple Low-E glazing, achieving U-values of 0.7 W/m²K. Continuous EPDM compression seals eliminated thermal bridging at the frame perimeter — a critical passive house requirement.

Coastal Renovation, Florida

A homeowner replaced drafty frames with premium UPVC casement windows. The IP65 compression seal blocked salt-air infiltration and wind-driven rain. Multi-point locking qualified the property for reduced insurance premiums. The 25-year maintenance-free UPVC surface needed no repainting in the salt-spray environment.

Heritage Renovation and High-Rise, London and Sydney

A London contractor specified premium UPVC casement windows with SDL grilles to match a heritage property's 19th-century timber aesthetic while achieving A-rated energy efficiency. In Sydney, 800 sets of tilt-and-turn premium UPVC casement windows were installed: tilt for safe passive ventilation, turn for interior glass cleaning without exterior access at height.

Why Buy Premium UPVC Casement Windows from HonCham

The premium UPVC casement windows market includes many suppliers who claim equivalent performance. The real differentiators for wholesale buyers and specifiers are specification consistency between samples and production batches, verified hardware grade, and compliant technical documentation for target market customs clearance. HonCham's premium UPVC casement windows deliver all three.

• Certifications: NFRC, NAMI, CE, AAMA, AS2047, ISO9001
• Hardware: Stainless steel friction stays and Roto/HOPO/Siegenia multi-point locks
• Glazing: Full IGU customization — double, triple, Low-E, acoustic PVB — in one frame series
• Warranty: 20-year profile, 5-year hardware and glass
• Packaging: Multi-layer EPE foam in fumigation-free reinforced wooden crates
• Entry: MOQ 1 set with full DDP logistics

To evaluate these premium UPVC casement windows for your project or distribution range, request a sample set or formal quotation with full technical datasheet.
